Leder (Surface)
TECHNICAL SPECIFICATIONS
| WEIGHT | 2.5 kg |
|---|---|

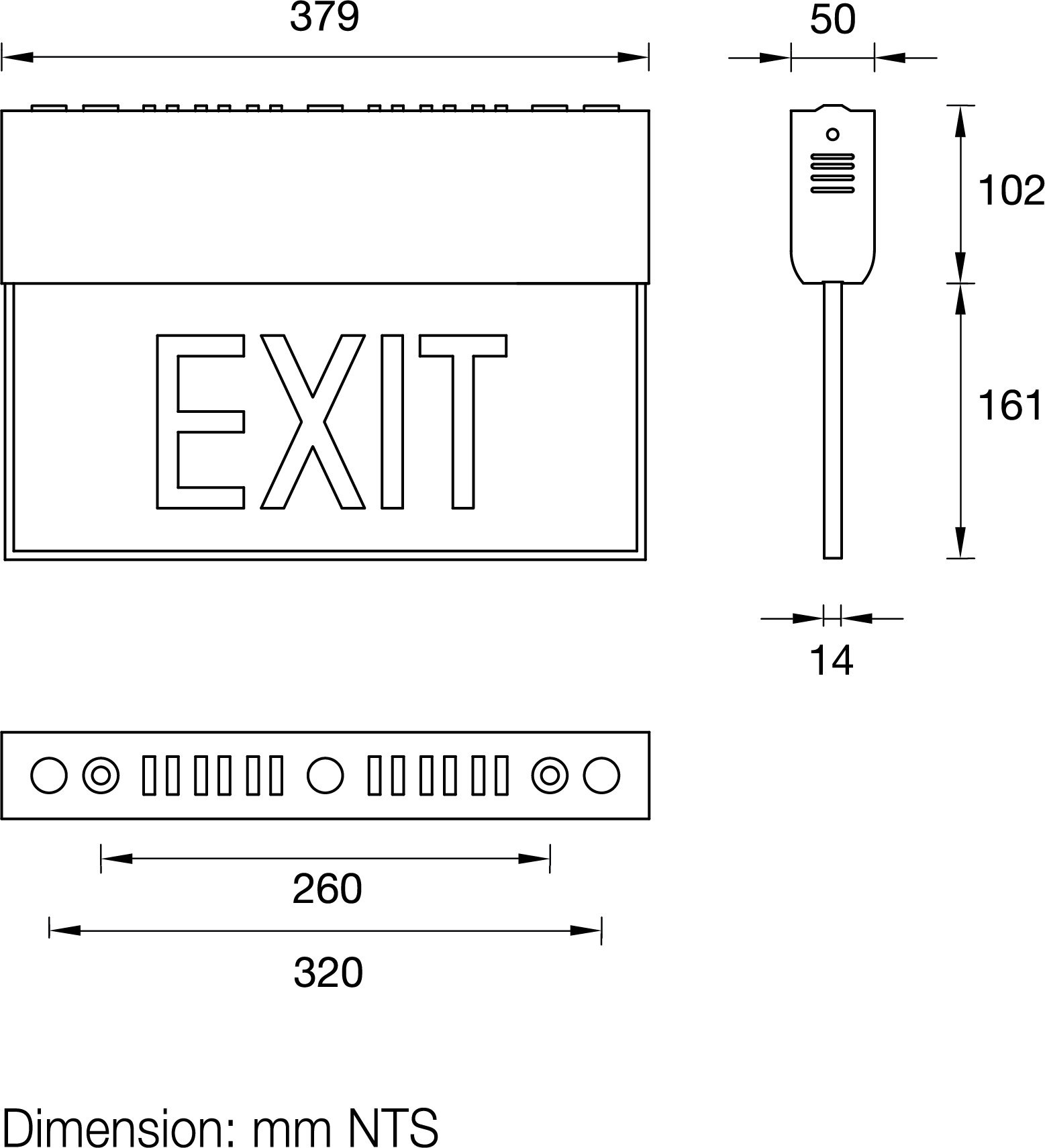

| DIMENSIONS | 379 x 50 x 263 mm |
| MODE OF OPERATION | Maintained |
| LAMP | Maxspid 1W SMT LED Lamp |
| RATED DURATION | 2 hrs and others |
| MAINS SUPPLY | 230 Volts |
| MAINS FREQUENCY | 50/60 Hz |
| POWER CONSUMPTION | < 3W |
| BATTERY | High temp nickel cadmium |
| CHARGE MONITOR | Green LED Ø5mm |
| TEST FACILITY | Micro Switch |
| SAFETY FEATURE | Low volt cut-off preventing battery overdischarge |
| FITTING CONSTRUCTION | Electro galvanised steel with epoxy powder coating |
| DIFFUSER | Fire retardant moulded acrylic |
| MOUNTING | Wall or ceiling |
| CABLE ENTRY | Ø20mm K/O hole |
| COMPLIANCE | SS 563 : Part 1 & 2, SS IEC 60598-2-22 |
| WARRANTY | 1 Year |
SMT LED with lifespan 50,000 burning hours.

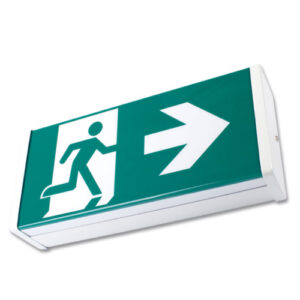

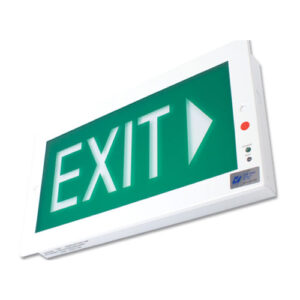

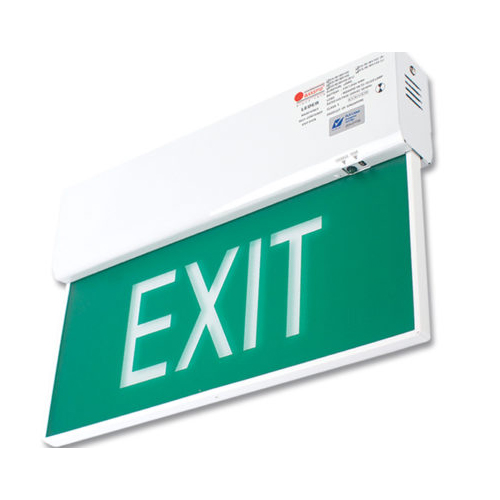

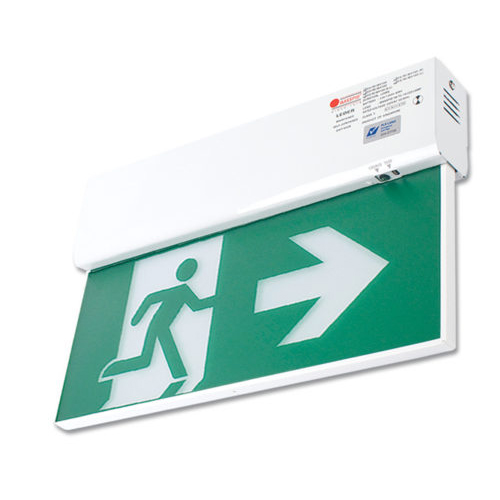

SMT LED surface mount emergency exit light.
| Single Sided | Double Sided | Legend |
|---|---|---|
| ES/M/W5100 | ED/M/W5100 |   |
| ES/M/W5100 (R) | ED/M/W5100 (R/L) |   |
| ES/M/W5100 (L) | ED/M/W5100 (R/L) |  |
| ES/M/W5100 (D) | ED/M/W5100 (D) |  |
| ES/M/W510RM | ED/M/W510RM |   |
| ES/M/W510RM (E) | ED/M/W510RM (E/W) |   |
| ES/M/W510RM (W) | ED/M/W510RM (E/W) |   |
| ES/M/W510RM (S) | ED/M/W510RM(S) |   |
| ES/M/W510RM (N) | ED/M/W510RM(N) |   |
